BAY81-24W/36W Explosion Proof Linear Light

BAY81-24W/36W Explosion Proof Linear Light APPLICATIONSSuitable for flood-lighti...


  • Operating temperature: -20 ºC to +40 ºC
  • Rated voltage: AC220V-240V 50Hz/60Hz
  • Wattage: 20W 40W 60W
  • Type: LED3030
  • Luminous efficiency: 140 lm / W
  • Degree of protection: IP65
  • Cable entry: G1/2
  • Corrosion-proof class: WF2

Product Details

Product Tags

BAY81-24W/36W Explosion Proof Linear Light

APPLICATIONS
Suitable for flood-lighting of hazardous locations in Zone 2, such as offshore platforms, oil fields, drilling sites, refinery plants and chemical plants.

TECHNICAL DATA
Body material:Aluminum alloy with epoxy powder coating
Diffuser:Tempered glass
Rated voltage:AC110V-240V  50Hz/60 Hz
Wattage:20W 40W 60W
Degree of protection:IP66
Cable entry:G3/4
Corrosion-proof class:WF2

FEATURES
1、Alloy made enclosure
2、Degree of protection: IP66
3、High reliability for long time use
4、Suitable for ceiling mounting, derrick mounting, wall mounting,pendant mounting and clamp mounting

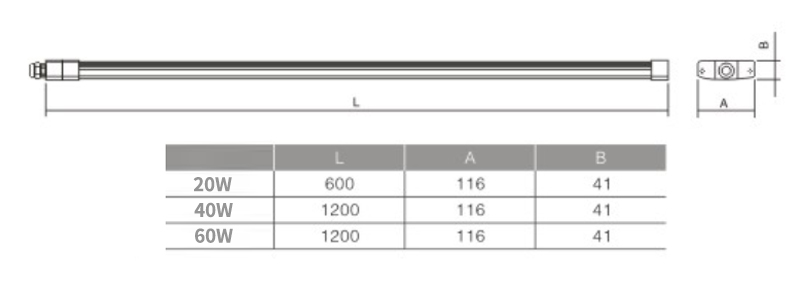

DIMENSION DRAWINGS

undefined
