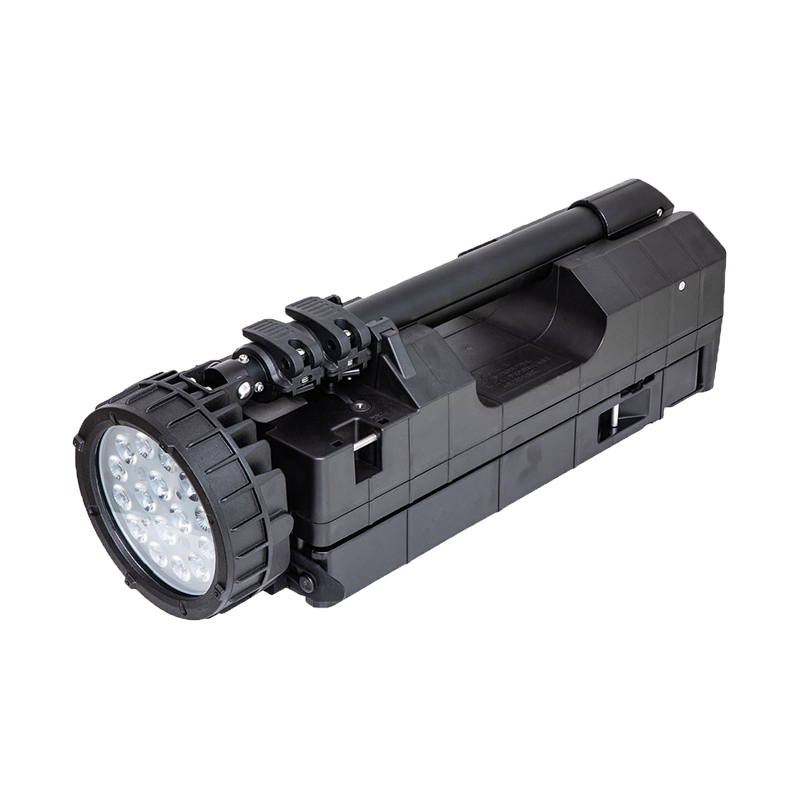

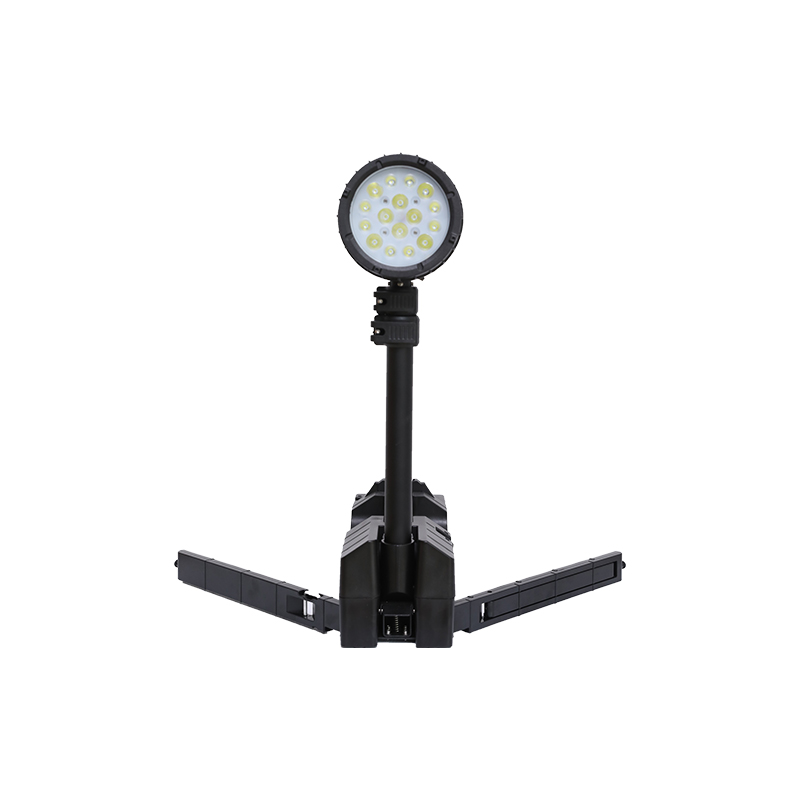

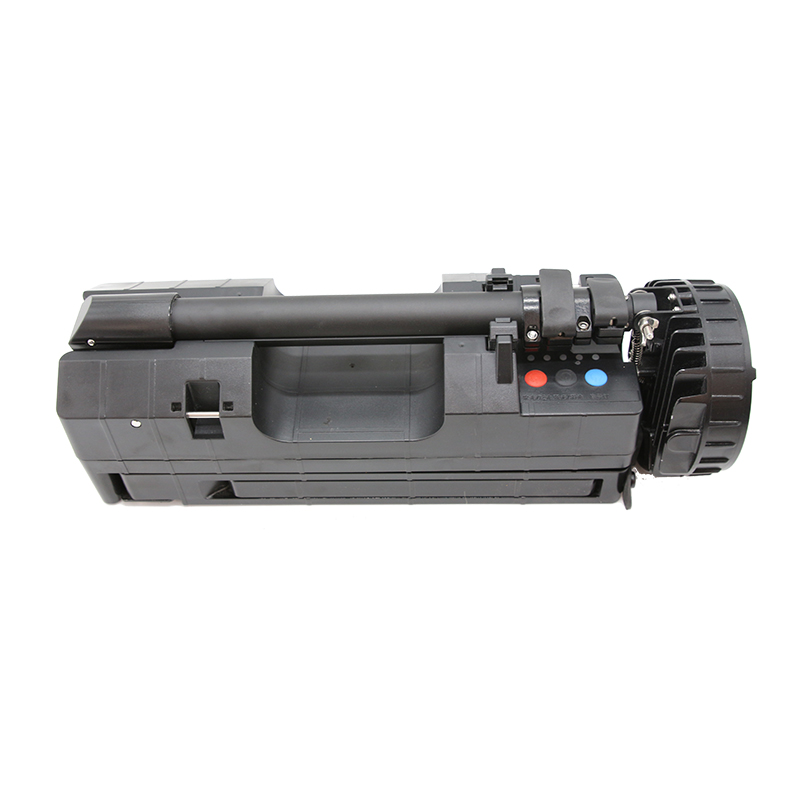

FW6117 EXPLOSION-PROTECTED PORTABLE LIGHT

FW6117,FW6117-50W,EXPLOSION-PROTECTED PORTABLE LIGHT,Suitable for small scope maintenance and construction lighting of combustible and explosive area in Oil & Gas and...


  • Operating temperature: -20 ºC to +40 ºC
  • Rated voltage: AC220V-240V 50Hz/60Hz
  • Wattage: 50W
  • Type: LED3030
  • Luminous efficiency: 140 lm / W
  • Degree of protection: IP66
  • Cable entry: ---
  • Corrosion-proof class: WF2

Product Details

Product Tags

APPLICATIONS
Suitable for small scope maintenance and construction lighting of combustible and explosive area in Oil & Gas and

TECHNICAL DATA
Body material:Polycarbonate
Diffuser:Polycarbonate
Rated voltage:AC110V-240V  50Hz/60 Hz
Output:DC22 V
Wattage:50W
Light mode:Spotlight / floodlight
Warning light:Red / Blue
Luminous efficiency:140 lm / W
Battery Type:Lithium battery
Battery Capacity:10 Ah
Charging time:≤6 h
Duration: >16 h (spotlight )
                   >10 h (flood light )
Degree of protection:IP66
Corrosion-proof class:WF2

FEATURES
1、Rechargeable
2、Indication of available battery capacity
3、Portable shoulder back, more light for carry
4、Multi-level light, with spotlight, floodlight, super lighting,and red or blue warning lights

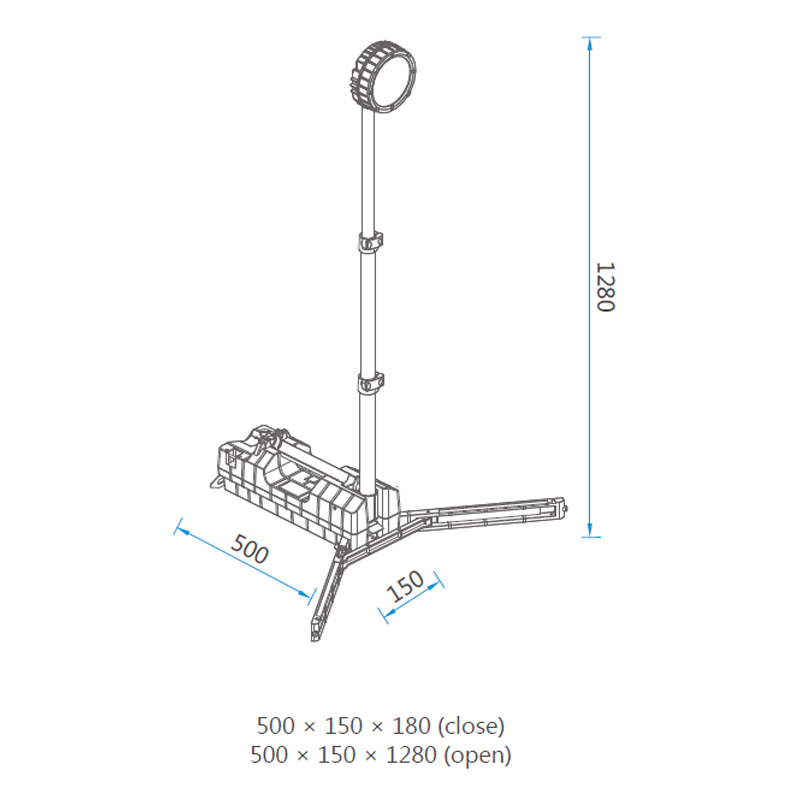

DIMENSION DRAWINGS

FW6117 EXPLOSION-PROTECTED PORTABLE LIGHT
