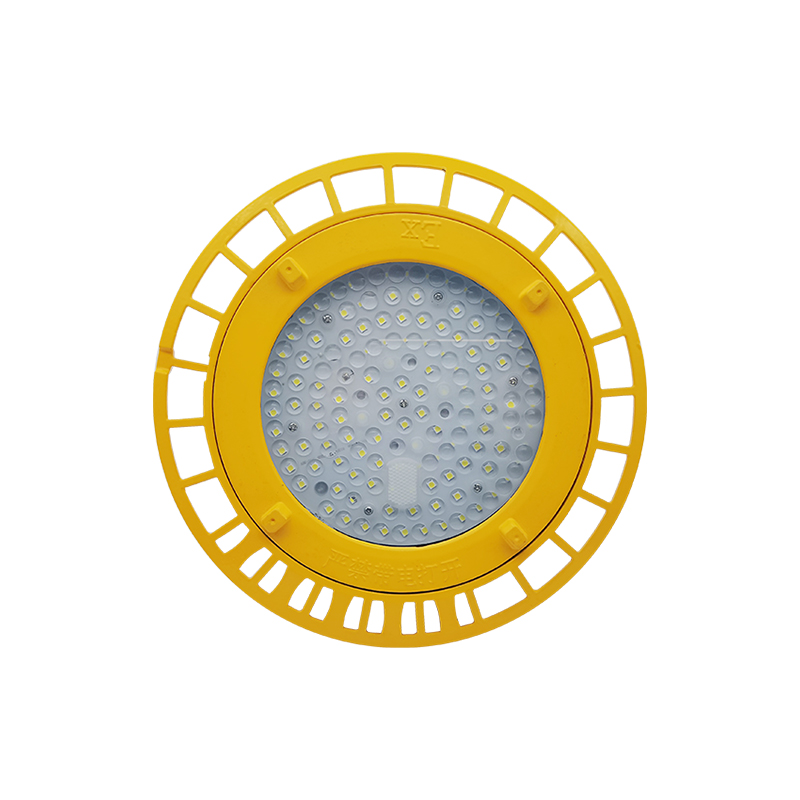

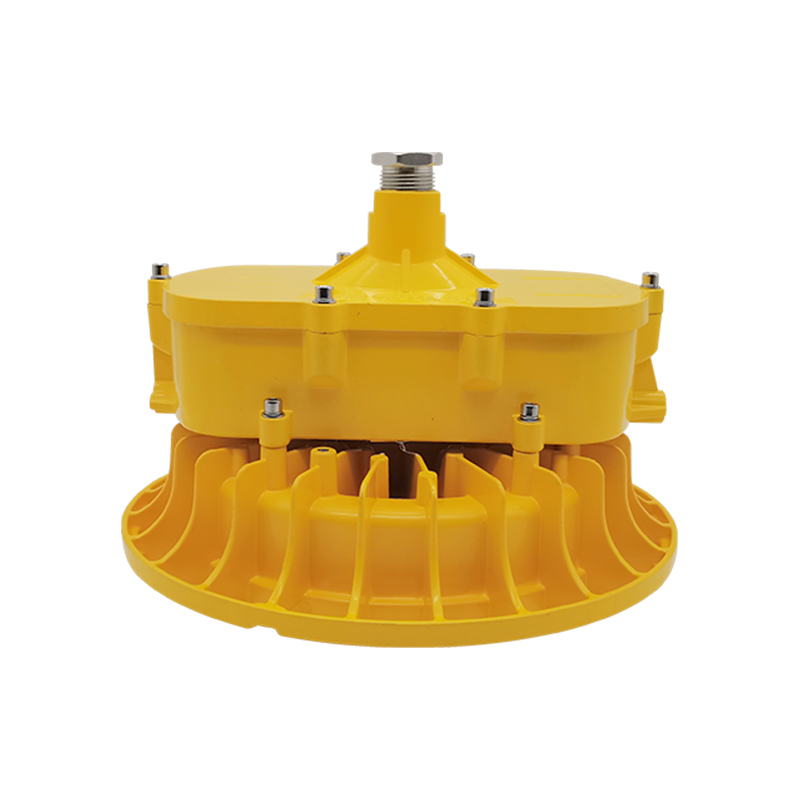

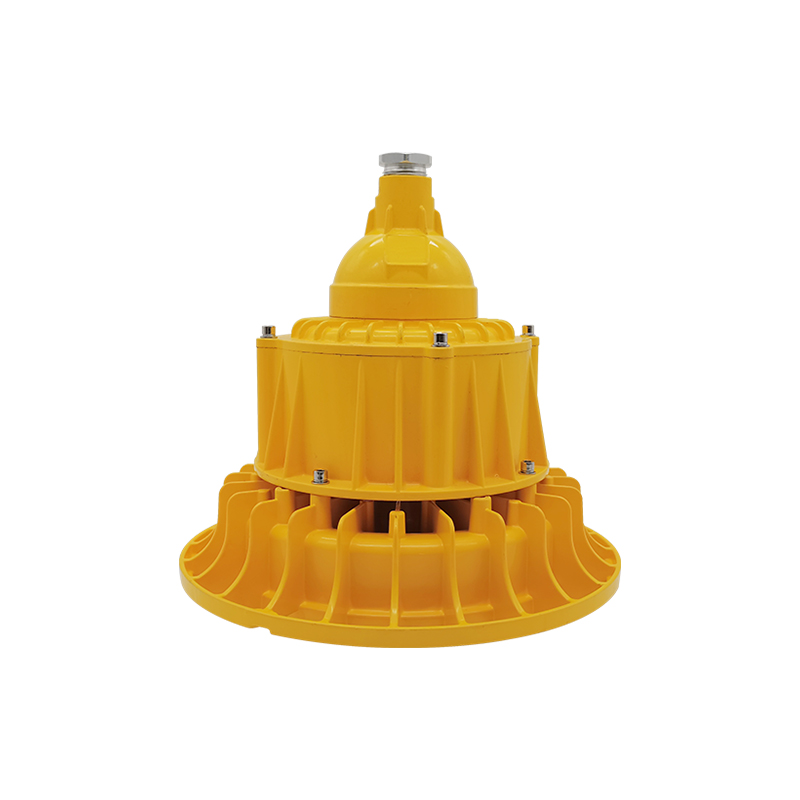

BFC(BFE)8125 LED EXPLOSION-PROTECTED (EMERGENCY) FLOODLIGHT

APPLICATIONSSuitable for illumination of hazardous locationsin various industrie...


  • Operating temperature: -20 ºC to +40 ºC
  • Rated voltage: AC220V-240V 50Hz/60Hz
  • Wattage: 70W 100W 150W
  • Type: LED3030
  • Luminous efficiency: 140 lm / W
  • Degree of protection: IP66
  • Cable entry: G3/4
  • Corrosion-proof class: WF2

Product Details

Product Tags

APPLICATIONS
Suitable for illumination of hazardous locationsin various industries.

TECHNICAL DATA
Body material:Aluminum alloy with epoxy powder coating
Diffuser:Tempered glass
Rated voltage:AC110V-240V  50Hz/60 Hz
Wattage:70W 100W 150W
Luminous efficiency:140 lm / W
Emergency working power:6W
Emergency voltage:3.7V
Battery capacity:2 Ah
Emergency duration:>120 minutes
Battery charging time:<24 h
Degree of protection:IP66
Cable entry:G3/4
Corrosion-proof class:WF2

FEATURES
1、Optimum design of electrical system ensures 85% electrical efficiency and 0.98 power factor.
2、3rd generation LED light source
3、Vacuum coating reflector, 99.99% reflectivity
4、Driver isolated from the lamp in a separate compartment, thus resulting in a longer service life, as the heat form the lamp is not direct.
5、Painted U.S. marine grade aluminum alloy housing, corrosion resistance

DIMENSION DRAWINGS
