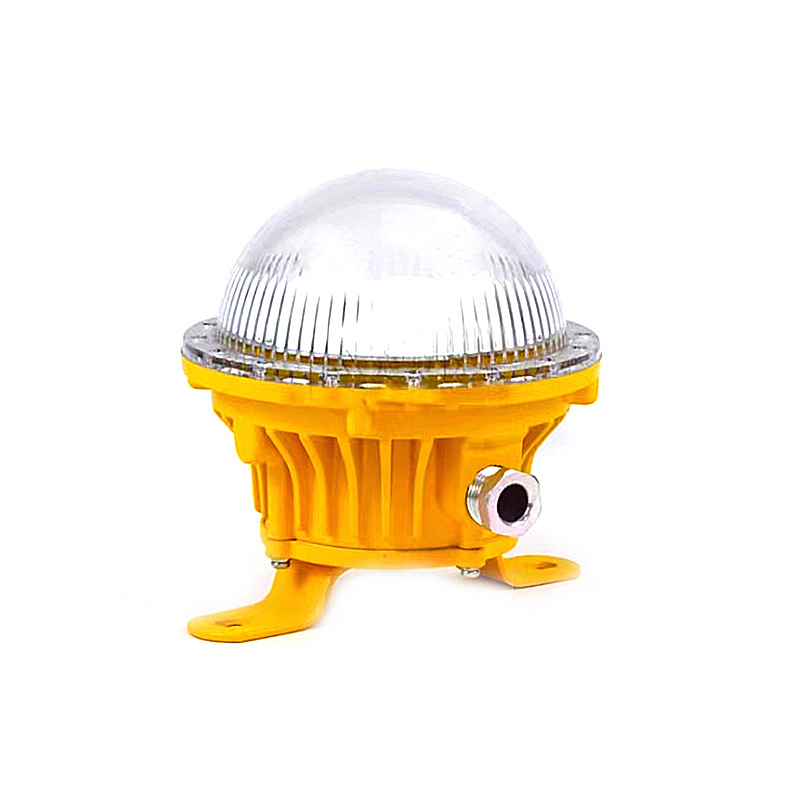

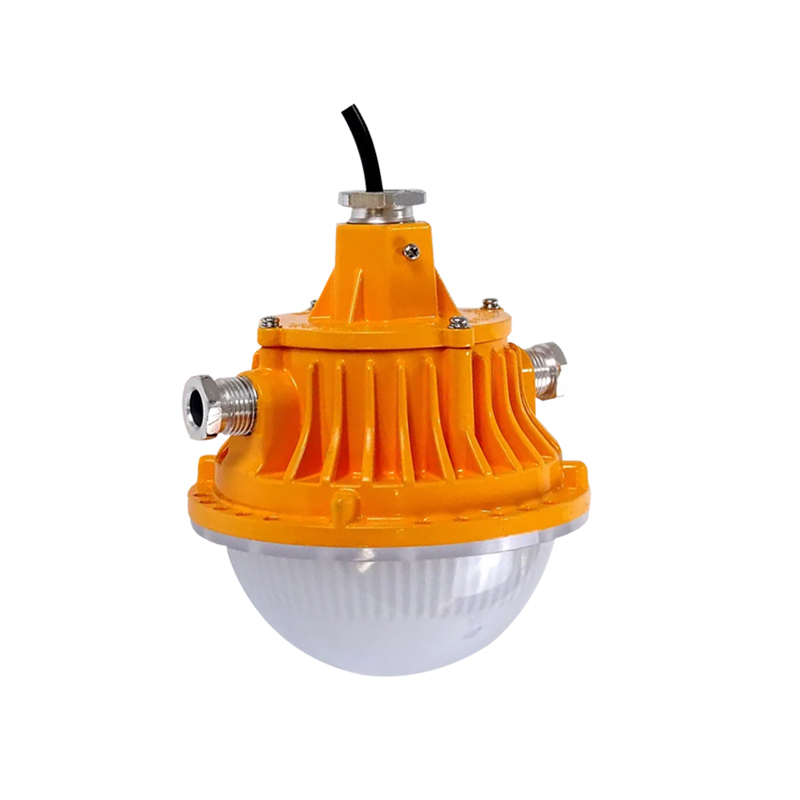

BFC8183 EXPLOSION-PROTECTED LED PENDANT LIGHT FITTING
APPLICATIONS
Suitable for illumination of oil refining and chemical facility platforms, boiler platforms,cable tunnels and other hazardous locations.
TECHNICAL DATA
Body material：Aluminum alloy with epoxy powder coating
Diffuser：Tempered glass
Rated voltage：AC110V-240V 50Hz/60 Hz
Wattage：5W 10W 15W
Luminous efficiency：140 lm / W
Emergency working power：<6W
Emergency voltage：3.7V
Battery capacity：2 Ah
Emergency duration：>60 minutes
Battery charging time：<24 h
Degree of protection：IP66
Cable entry：G3/4
Corrosion-proof class：WF2
FEATURES
1、LED light source providing high luminous efficacy and long life
2、Soft and uniform light distributions
3、Efficiency of luminaire: Over 86%
4、Explosion group: IIC
5、Degree of protection up to IP66
6、Small size and low eight allowing for pole mounting and ceilingmounting
DIMENSION DRAWINGS
