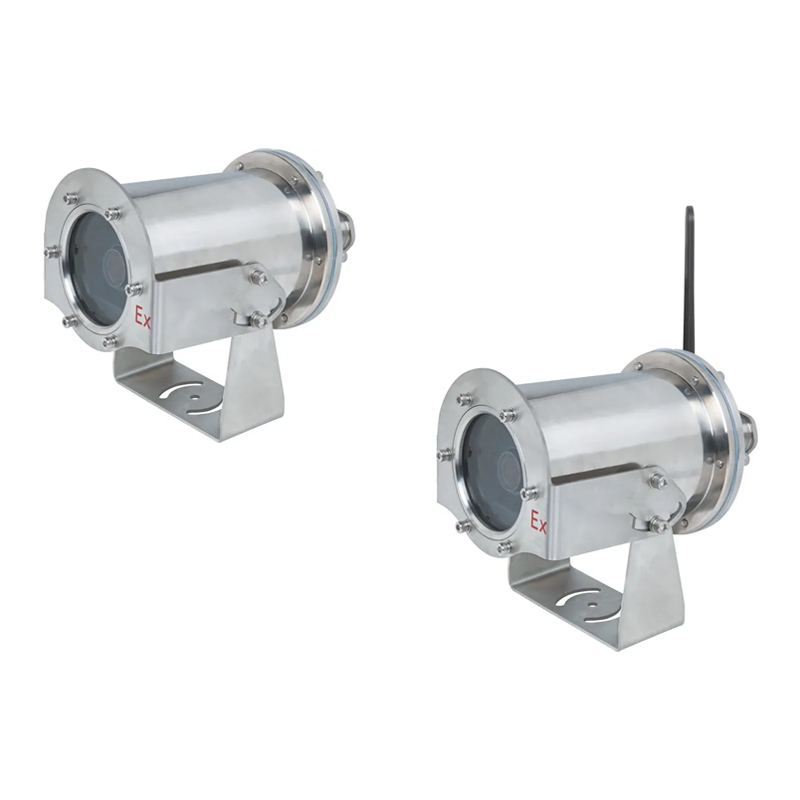

BJK-S/GD Series Security Explosion Proof Camera IP66 IP68 Protection Atex Approved
APPLICATIONS
hazardous locations in Zone 2, outdoor operations, construction sites and facilities, etc.
FEATURES
◆ The explosion-proof camera is used as a fixed terminal in the intelligent video surveillance system for on-site scanning
transmission, real-time video transmission or real-time video storage, remote network image transmission and other functions;
◆ Suitable for fixed-point monitoring of key areas; equipped with semi-fixed PTZ, whose angles can be adjusted vertically and
horizontally;
Intelligent temperature control devices can be installed inside, and the product can be applied to -60°C to +63°C harsh working
conditions:
◆The camera is configured with wireless module for transmitting video signals by using 4G, 5G, WIFI, and other wireless
networks.
◆steel housing explosion proof camera,IP68 Degree of protection
TECHNICAL DATA
Video coding format:H.265, H.264, H.264B, MJPEG
Wireless module:Support 4G, 5G, WIFI connection
Housing material:304 stainless steel or 316 or 316L
Degree of protection:IP66/IP68
Ambient temperature:-60℃~+63℃
Cable gland:2×M20×1.5 or NPT 1/2" inlet port, suitable for Φ6.5mm~Φ14.5mm
Installation method:fixed bracket, base, column
