APPLICATIONS

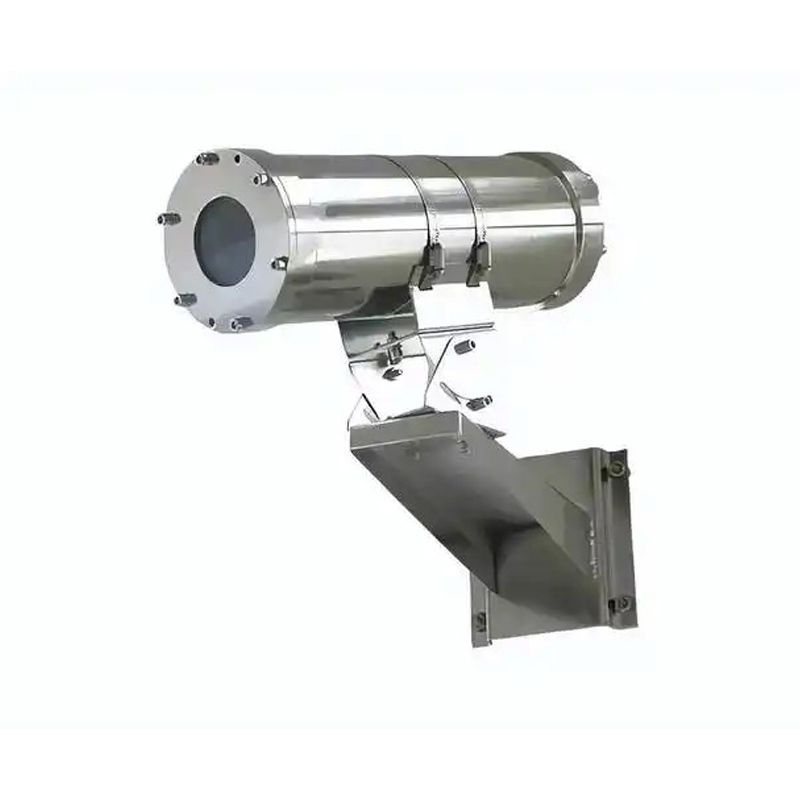

◆ The explosion-proof camera is used as a fixed terminal in the intelligent video surveillance system for on-site scanning
transmission, real-time video transmission or real-time video storage, remote network image transmission and other functions;
◆ Suitable for fixed-point monitoring of key areas; equipped with semi-fixed PTZ, whose angles can be adjusted vertically and
horizontally;

FEATURES
1、Intelligent temperature control devices can be installed inside, and the product can be applied to -60°C to +63°C harsh working
conditions:
4、The camera is configured with wireless module for transmitting video signals by using 4G, 5G, WIFI, and other wireless
networks.
3、steel housing explosion proof camera,IP68 Degree of protection

TECHNICAL DATA
Video coding format：H.265, H.264, H.264B, MJPEG
Wireless module：Support 4G, 5G, WIFI connection
Housing material：304 stainless steel or 316 or 316L
Degree of protection：IP66/IP68
Ambient temperature：-60℃~+63℃
Cable gland：2×M20×1.5 or NPT 1/2" inlet port, suitable for Φ6.5mm~Φ14.5mm
Installation method：fixed bracket, base, column
