Ccd97-100W/150W/200W/300W Explosion Proof Floodlight

Ccd97 Explosion Proof Floodlight Manufacturer,Ccd97-70W,Ccd97-100W,Ccd97-120W,Ccd97-150W,Ccd97-200W,Suitable for large area illumination of hazardous locations in Zone 2, outdoor operations, construction sites and facilities, etc....

Operating temperature: -20 ºC to +40 ºC
Rated voltage: AC220V-240V 50Hz/60Hz
Wattage: 70W 100W 120W 150W 200W 300W
Type: LED3030
Luminous efficiency: 140 lm / W
Degree of protection: IP65
Cable entry: G3/4
Corrosion-proof class: WF2

CONTACT NOW down load to pdf

Product Details

Product Tags

APPLICATIONS
Suitable for large area illumination of hazardous locations in Zone 2, outdoor operations, construction sites and facilities, etc.

TECHNICAL DATA
Body material：Aluminum alloy with epoxy powder coating
Diffuser：Tempered glass
Rated voltage：220 V - 240 V AC 50 Hz / 60 Hz
Wattage：100W / 150 W / 200 W / 400 W
Luminous efficiency：140 lm / W
Degree of protection：IP65
Cable entry：G3/4
Corrosion-proof class：WF2

FEATURES
1、Suitable for Zone 1 applications
2、Degree of protection: IP 66
3、 LED light source providing high luminous efficacy and long service life
4、Designed with a dimmer interface (DC 0 - 10 V)
5、Multiple mounting options such as seat mounting, wall mounting and ceiling mounting

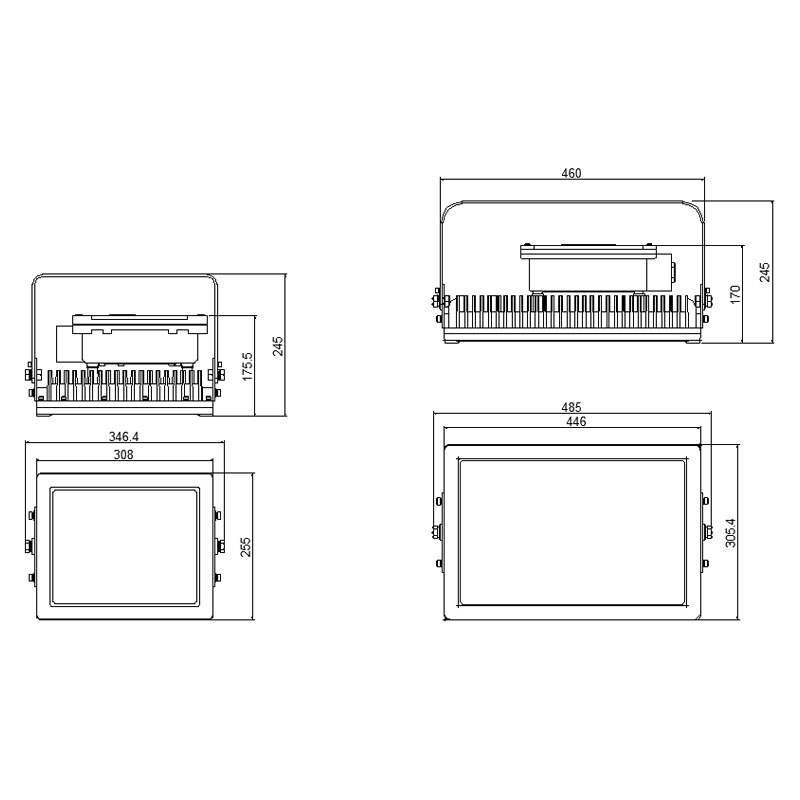

DIMENSION DRAWINGS
