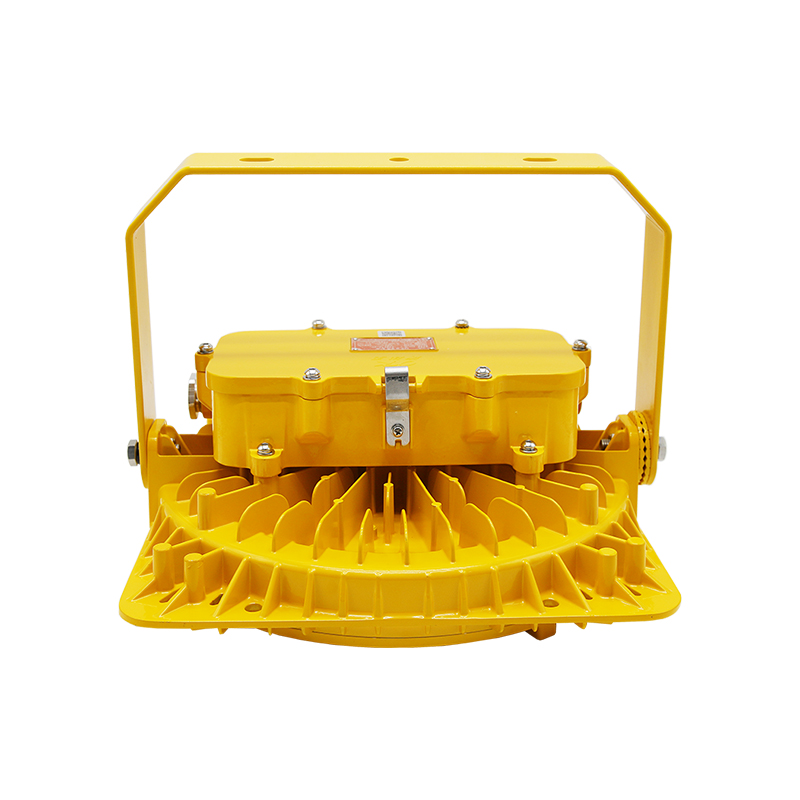

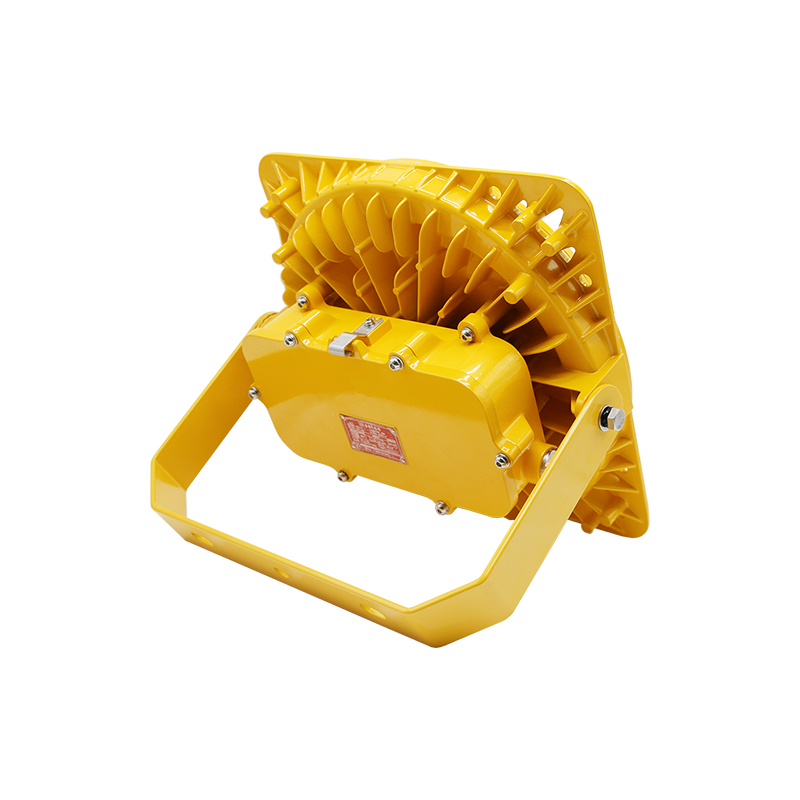

BFC8117 EXPLOSION-PROTECTED LED FLOODLIGHT
APPLICATIONS
Suitable for large area illumination of hazardous locations in Zone 2, outdoor operations, construction sites and facilities, etc.
TECHNICAL DATA
Body material：Aluminum alloy with epoxy powder coating
Diffuser：Tempered glass
Rated voltage：220 V - 240 V AC 50 Hz / 60 Hz
Wattage：150 W / 200 W / 400 W
Luminous efficiency：140 lm / W
Degree of protection：IP65
Cable entry：G3/4
Corrosion-proof class：WF2
FEATURES
1、Suitable for Zone 1 applications
2、Degree of protection: IP 66
3、 LED light source providing high luminous efficacy and long service life
4、Designed with a dimmer interface (DC 0 - 10 V)
5、Multiple mounting options such as seat mounting, wall mounting and ceiling mounting

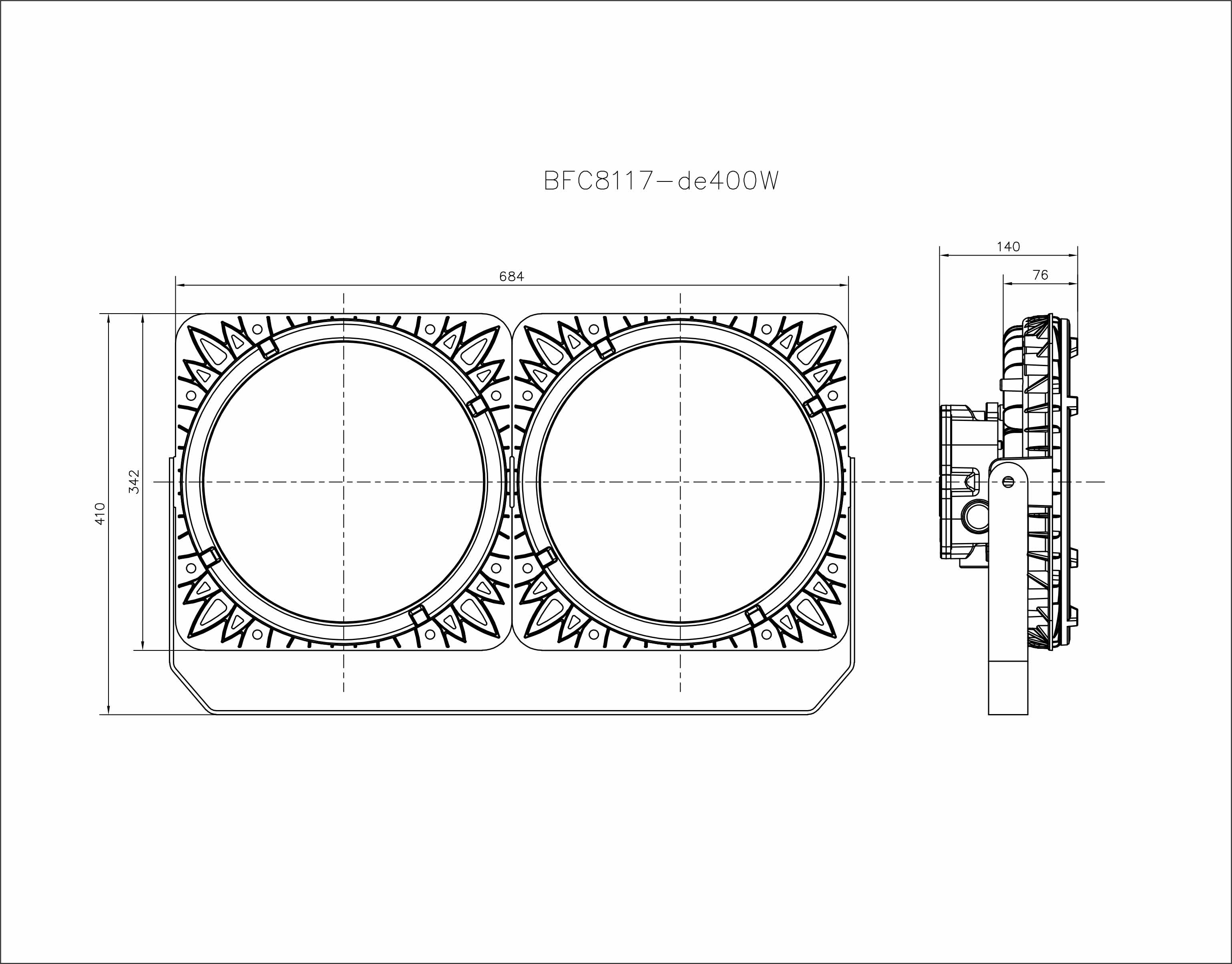

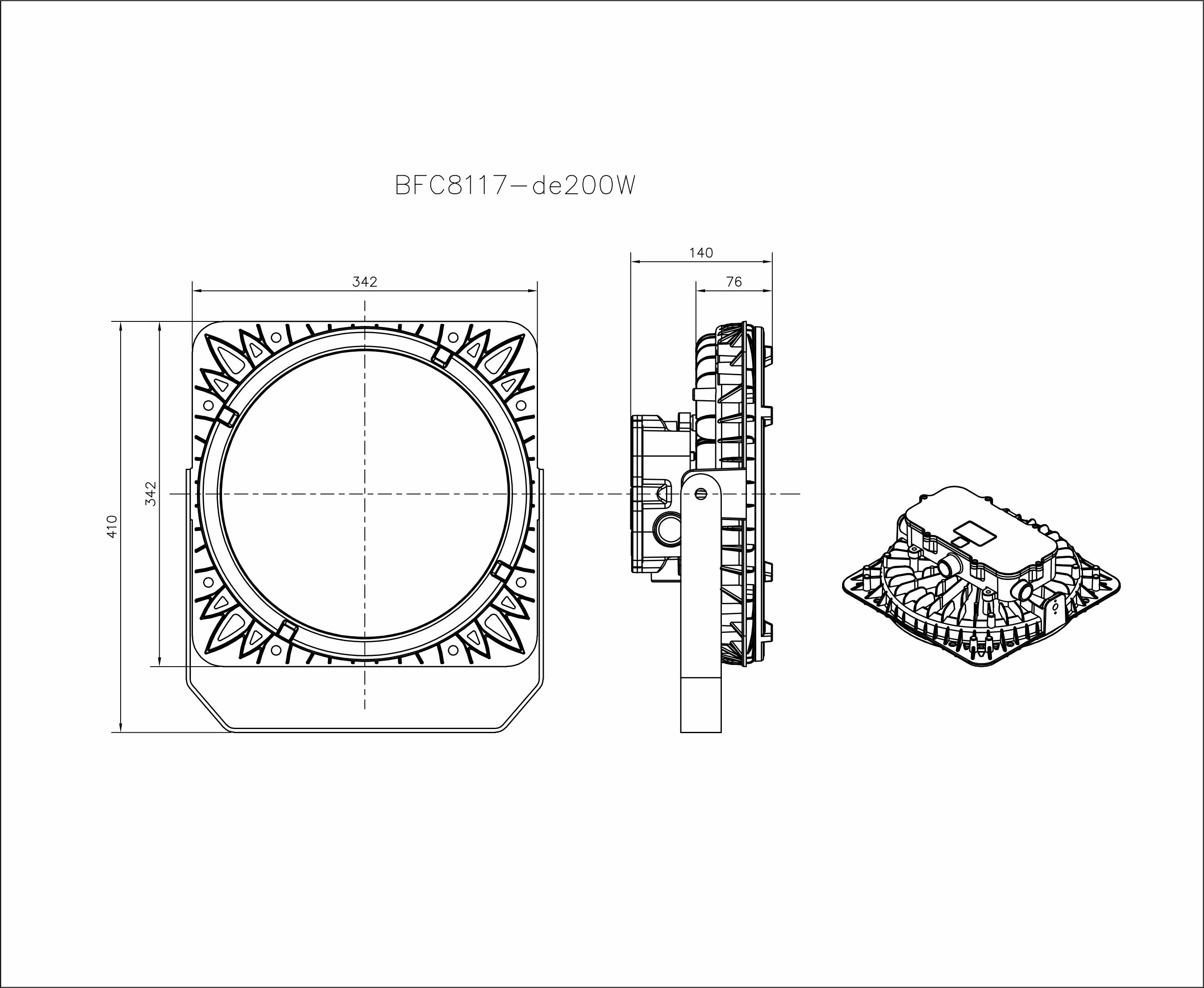

DIMENSION DRAWINGS
We can provide lighting design and data by professional lighting software based upon simulated site situation on request.
